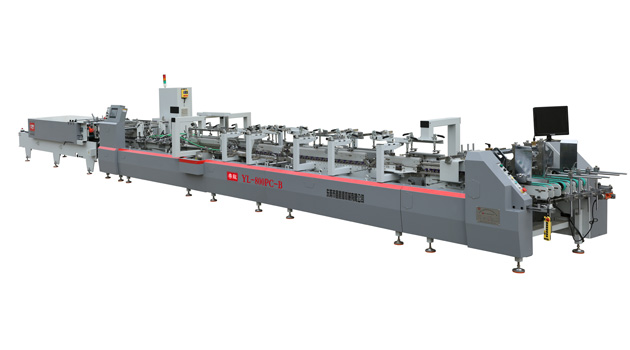

YL-800PC-B Automatic Folder Gluer

Inquire Now

Description
Folding Specification
Partial Mechanism Function Description

1. Equipped with full color touch screen monitor, main machine, transfer and conveyor can control the speed automatically and synchronization trace parameter setting system.

2. The machine adopt movable and adjustable operating function in each section .Equipped with elaborate tooth lever design. It is simple, convenient and efficient for one man operation.

3. High power stepless speed control frequency conversion and high-efficiency power motor, the highest speed can reach 400 meters/min, power transmission adopts powerful belt transmission, with low noise, high efficiency, easy maintenance and economic efficiency.

4. Each functional components of the machine adopt modular design, which is convenient to assemble, convenient to replace and debug products, convenient for beginners to master technology, and easy to learn.

5. Unique design of the upper and lower glue tank and coordinate with the need of products.

6. Compression and conveyor section equipped with adjustable the pressure design according to the needs of the products. Equipped with a set of special soft belts to ensure uniform pressure and perfect quality.

7. The machine adopt photoelectric counting, which can be used for total or quantitative counting, and equipped with kicker mark recognition device.

Model	YL-800PC-B
Suitable paper	200-800 g / ㎡ cardboard, E, F, N corrugated board
Box type	Standard: straight line , bottom lock, double sides,
Folding way	Automatic Continuously Feeding
Glue type	Solute style
Max. speed	400m/min
Power	21KW,AC220V/380V
Weight	7T
Dimension	15000mm1800mm1800mm（LWH）
Inching speed	40m/min
Compressed air	6 bar
Air compressor capacity	10m/³
Air tank capacity	60L
Compressed air	6 bar

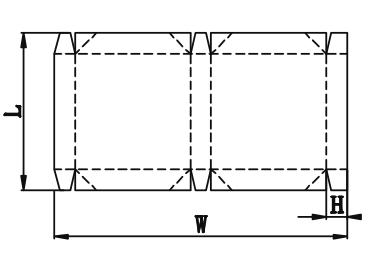

Straight line box	Max	Min
L	800mm	80mm
W	800mm	130mm
H	385mm	60mm

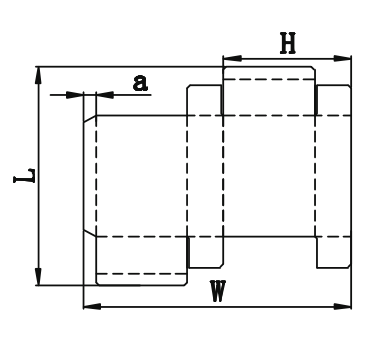

Crash lock box	Max	Min
L	800mm	90mm
W	800mm	170mm
H	385mm	80mm

Double sides box	Max	Min
L	800mm	180mm
W	650mm	180mm
H	50mm	15mm

Four corner(optional)	Max	Min
L	800mm	130mm
W	800mm	150mm
H	150mm	20mm

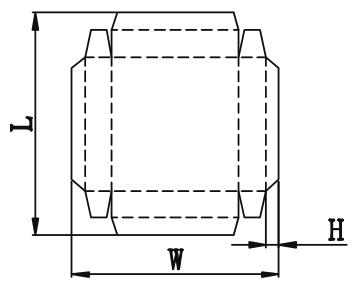

Six corner(optional)	Max	Min
L	800mm	130mm
W	800mm	250mm
H	150mm	30mm

Feeder

>Independently motorized friction feeder with variable speed
>Adjustable vibration motor
>Side feed gates fully adjustable to the width of the blank
>Two adjustable front feed knives
Aligner section

>Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment.

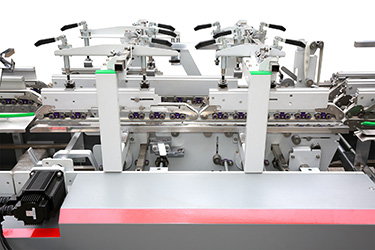

Pre-folding section

>Left and right pre-folding.
>The left upper left 180 ° pre-folded
>The third indentation line 135°pre-folding
>1st and 3 rd crease openers.
Bottom of the hook

>The whole set of frontal lock device ensures the smooth and accurate operation of the bottom lock.
>B-type lock box accessories.
